Before & After Photos

The stem wall of the Phoenix home began showing serious warning signs of failure. This was due to the oxidation of the rebar inside the concrete. Our expert stem wall repair crew cut out the existing rebar and replaced it with our non-ferrous composite.

The stem wall on this Phoenix, AZ home was showing signs of failure. The existing rebar was causing the stem to flake and crack, so the Homeowner decided to call Arizona Foundation Solutions. Our stem wall repair crew installed our composite Stem Wall Repair System.

Foreperson: David Bickers

Consultant: Victor Rivera

This midcentury Phoenix, AZ home had a number of areas where the concrete stem wall was flaking, spalling and even crumbling.  This area was just under a window in the rear of the home.

Our Stem Wall Repair System was the ideal solution!  With a transferrable, lifetime warranty, this Homeowner has stem wall peace of mind.

Additionally to concrete stem wall repair services, we also specialize in concrete step repair in Mesa, Arizona.

The Robinson's home in Phoenix needed their stem wall repaired. The rebar used to reinforce the concrete stem wall foundation was corroding. The forces generated from the corrosion cracked the stem wall. We needed to chip back the concrete, replace the rebar, and then pour and form a new stem wall in the section that needed repair. If you're wondering, what is a stem wall? It is a crucial part of a home's foundation that supports the above-ground structure. Here are some before and after pictures of the stem wall repair.

Project Overview: In Phoenix, Arizona, David, the foreman, leads a foundation repair project that was booked by customer care representative Alysia. The homeowner has been experiencing structural damage due to foundation settlement, a common issue in the region caused by changes in moisture in the bearing soils. Greg, the design specialist, was assigned to evaluate the problem and perform a comprehensive manometer survey, which confirmed foundation settlement. The survey identified vertical cracks and uneven settling, requiring immediate attention to prevent further damage.

Initial Problem: The homeowner noticed cracks in the walls and uneven floors, which are common signs of foundation settlement. This is a significant issue in Arizona due to the expansive clay soils that shrink and swell with changes in moisture, leading to shifting and settling of the home’s foundation. Without proper intervention, the damage could worsen and lead to costly repairs or even structural failure.

Evaluation Process: Greg conducted a thorough analysis of the foundation and recommended using hydraulic push piers for stabilization. Hydraulic piers were chosen for their ability to bypass problematic soil and transfer the weight of the structure onto stable bedrock or load-bearing strata, which is typically 20 feet below the surface in Arizona. The piers would provide permanent support, stopping further settling and allowing for any necessary foundation adjustments.

After the Project:

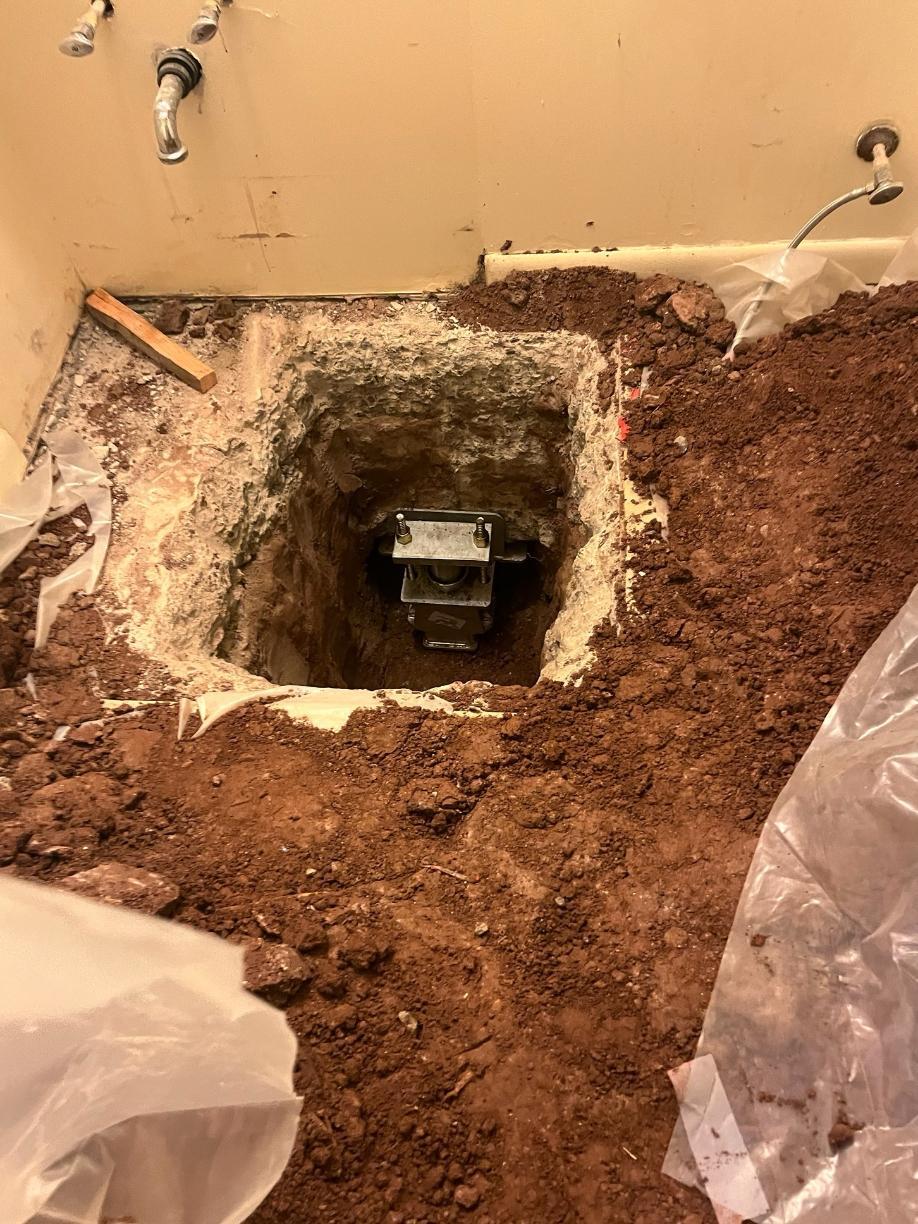

Completed Project Overview: David and his team successfully completed the foundation repair using hydraulic piers as outlined in Greg’s repair plan. The team excavated small pits around the home’s foundation to install the pier brackets, then drove high-strength steel piers into the ground until they reached the load-bearing strata. The hydraulic system applied over 70,000 lbs. of force to secure the piers in place, ensuring long-term stabilization. Once the piers were in position, the team simultaneously lifted the home to correct the uneven settlement.

Results: The foundation was successfully stabilized, and the structure was leveled, eliminating the vertical cracks and uneven flooring. The hydraulic piers, now permanently in place, will prevent any future foundation issues caused by shifting soil. The pits were backfilled, and the landscaping was restored, leaving no visible signs of the repair work. The homeowner now has peace of mind knowing that their home is protected by a durable, long-lasting solution.

Customer Satisfaction: Thanks to the coordinated efforts of the entire team, from Alysia’s appointment scheduling to David’s management of the project, the homeowner expressed satisfaction with the timely completion of the work and the quality of the repair. The expert evaluation from Greg and the efficient installation process ensured the problem was addressed quickly and effectively.
